"The Ultra Power of Newmax Lead-Acid Battery"

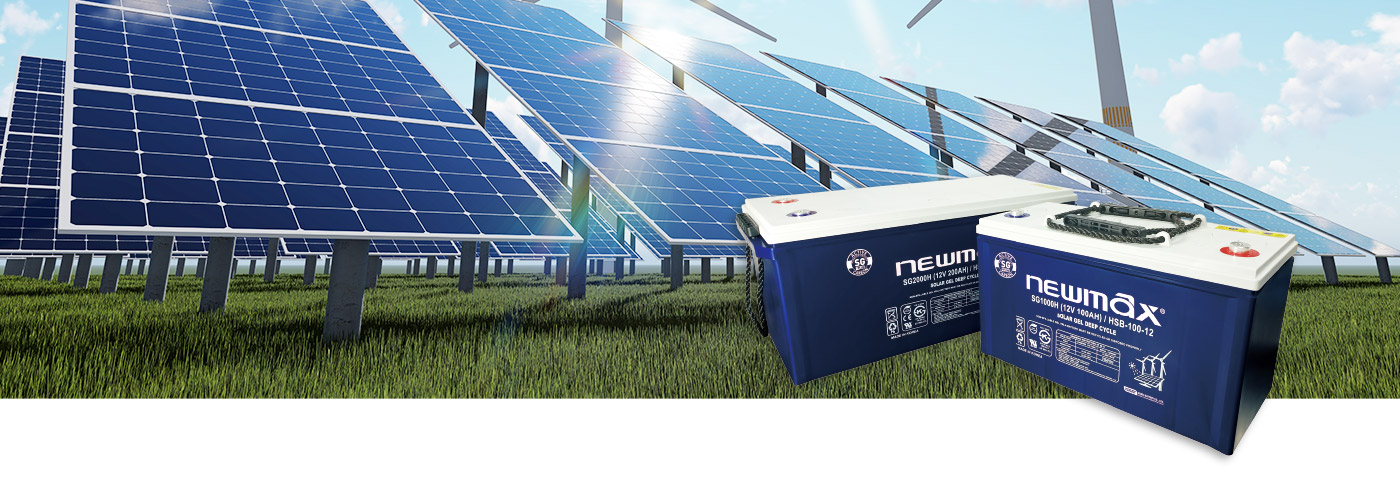

Newmax SG Series batteries are true maintenance-free sealed GEL batteries engineered specifically to satisfy the need for frequent deep-cycle from Photovoltaic (PV) and renewable energy storage applications.
Thanks to the combination of our proprietary MaxPress™ grid technology and ThixoPure™ GEL technology, SG series batteries provide stability and longevity you need for your everyday renewable energy needs.
-
- MaxPress™ Grid Technology
- Patent pending grid compressing technology which increases the density of the lead grain of the grids.
The grain density is typically 400% greater than that of the conventional casting method.
This up-to-date grid technology enables our batteries to survive even the toughest deep discharge and PSoC applications.
-
- ThixoPure™ GEL Technology
- Application of refined pure thixotropic colloidal silica GEL technology to battery electrolyte has greatly increased the cycle life by both preventing plate stratification and providing extra temperature protection against heat and cold. We are the first Korean company to successfully commercialize the GEL technology in the VRLA battery industry.
-
- FlexSealing™ Anti Explosion Filter
- Patent pending proprietary cap filtering and sealing technology. Battery cell caps are sealed simultaneously using specially designed o-rings and explosion filters to prevent leakage and gassing more effectively than ever before.
-
- ActiveCarbon™
- In every Newmax battery, proprietary micro carbon additive is used in the active material for both positive and negative plates to improve acceptance and cycle endurance. ActiveCarbon™ works to strengthen charge pathways to improve performance consistency and enhance performance at partial state of charge (PSoC) environment.
-
- Thermal Protection Heat Protection Case
- Specially formulated heat and flame resistant polypropylene case material is used to effectively block ambient heat thus preventing heat related malfunctions such as thermal runaway. This proprietary high rigidity case material has heat deflection rating of 140°C and complies to RoHS Compliant EU Directive 2002/95/EC. Additional UL94-V0 protection also available.

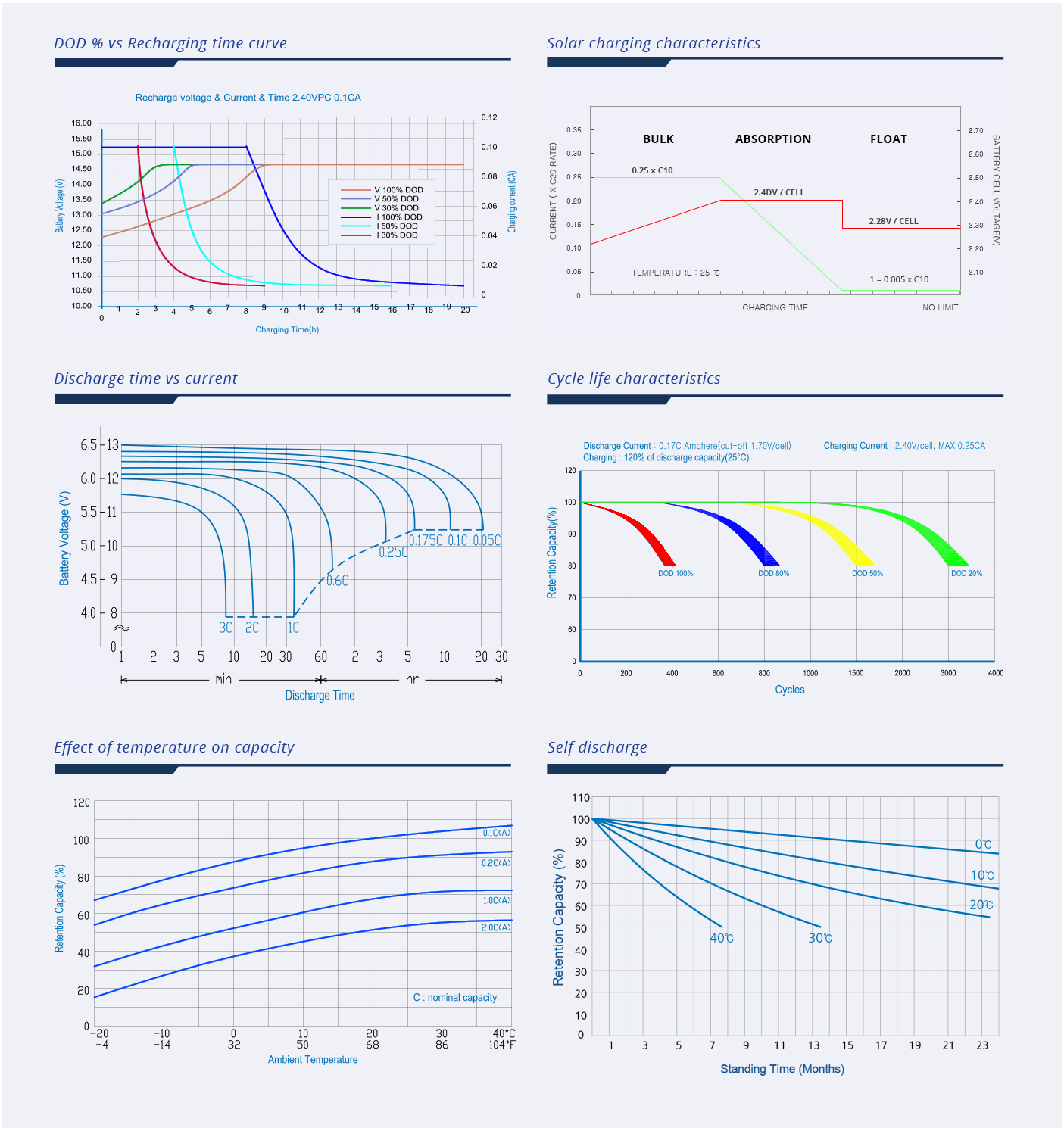

12 Voltage SG Series Battery Specifications
※ 좌, 우로 스와이프하면 내용을 확인할 수 있습니다.
TERMINAL(mm)
※ 좌, 우로 스와이프하면 내용을 확인할 수 있습니다.
