“The Ultra Power of Newmax VRLA Battery”
PNB Series have been developed with in mind for telecommunication BTS, UPS, and general purpose industrial applications. Newmax’s proprietary MaxPress™ grid technology along with AGM separators gives the PNB series the durability and reliability you need for your data centers, telecommunication relay stations and everyday UPS applications.
Approved by the Republic of Korea Ministry of Defense for military use, PNB series will provide the performance and reliability you need.
-
- MaxPress™ Grid Technology
- Patent pending grid compressing technology which increases the density of the lead grain of the grids.
The grain density is typically 400% greater than that of the conventional casting method.
This up-to-date grid technology enables our batteries to survive even the toughest deep discharge and PSoC applications.
-
- FlexSealing™ Anti Explosion Filter
- Patent pending proprietary cap filtering and sealing technology. Battery cell caps are sealed simultaneously using specially designed o-rings and explosion filters to prevent leakage and gassing more effectively than ever before.
-
- ActiveCarbon™
- In every Newmax battery, proprietary micro carbon additive is used in the active material for both positive and negative plates to improve acceptance and cycle endurance. ActiveCarbon™ works to strengthen charge pathways to improve performance consistency and enhance performance at partial state of charge (PSoC) environment.
-
- Thermal Protection Heat Protection Case
- Specially formulated heat and flame resistant polypropylene case material is used to effectively block ambient heat thus preventing heat related malfunctions such as thermal runaway. This proprietary high rigidity case material has heat deflection rating of 140°C and complies to RoHS Compliant EU Directive 2002/95/EC. Additional UL94-V0 protection also available.

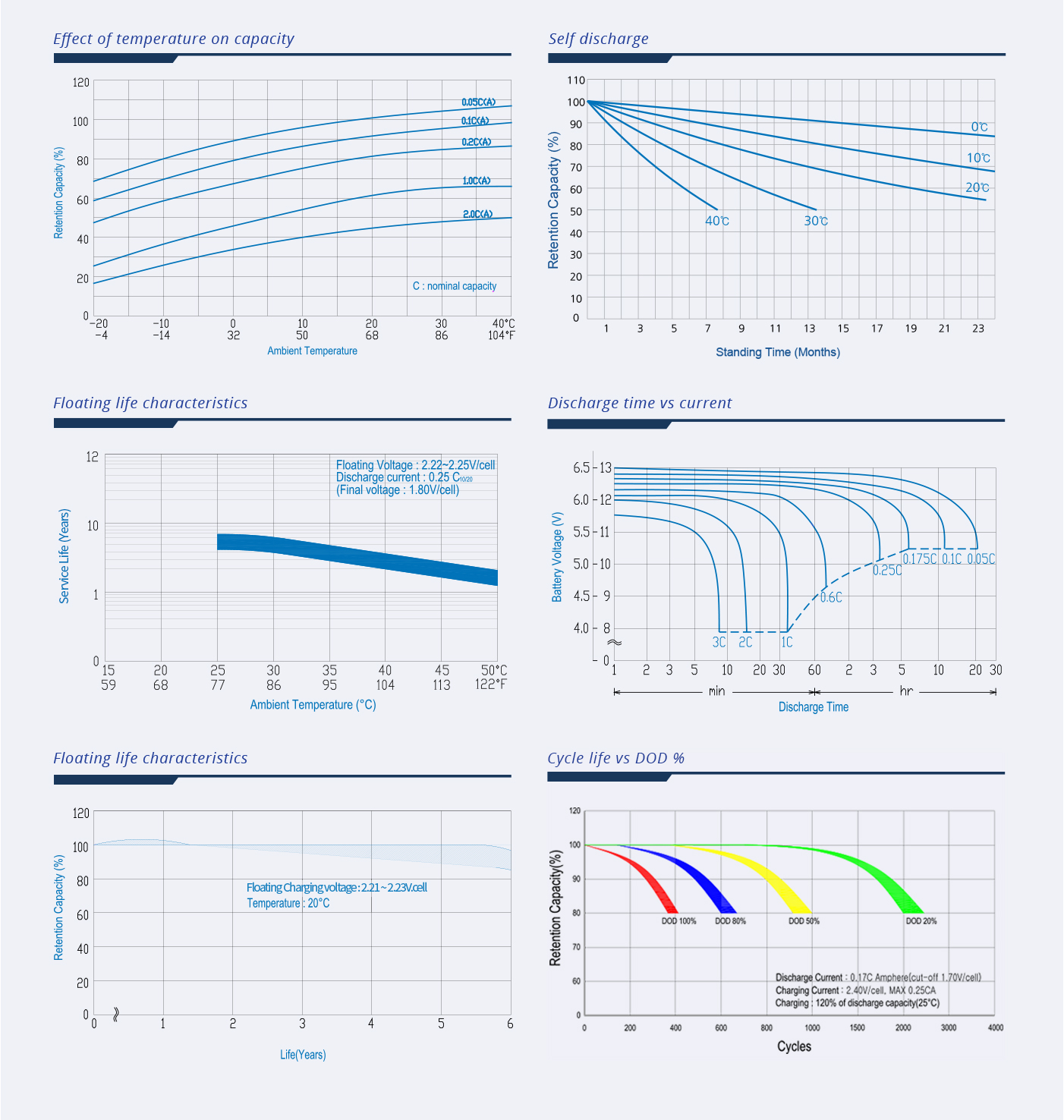

12 Voltage PNB Series Battery Range Specifications
※ 좌, 우로 스와이프하면 내용을 확인할 수 있습니다.
TERMINAL(mm)
※ 좌, 우로 스와이프하면 내용을 확인할 수 있습니다.
