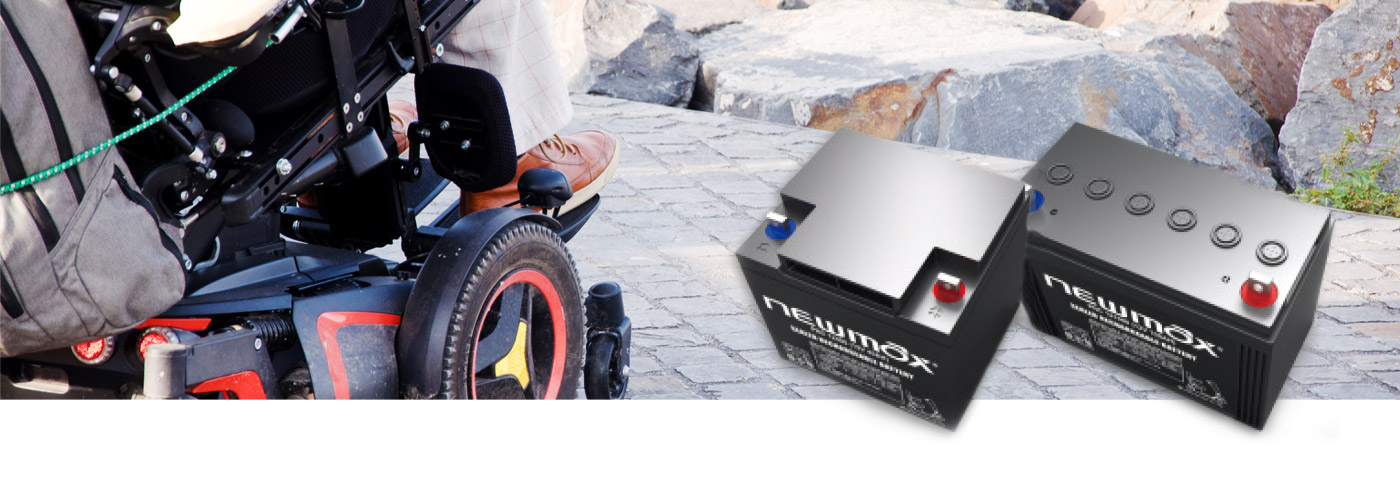

PNC Series (Mobility Deep Cycle)

  • DenseMax
    DenseMax™ Grid Technology
    Proprietary grid casting technology that condenses the lead grain in the grids increasing the density by 50% compared to a conventional gravity casting method. Higher density grids enable prolonged battery life even in the most severe operating environments.
  • ThixoPure™
    FlexSealing™ Anti Explosion Filter
    Patent pending proprietary cap filtering and sealing technology. Battery cell caps are sealed simultaneously using specially designed o-rings and explosion filters to prevent leakage and gassing more effectively than ever before.
  • ThixoPure™
    ActiveCarbon™
    In every Newmax battery, proprietary micro carbon additive is used in the active material for both positive and negative plates to improve acceptance and cycle endurance. ActiveCarbon™ works to strengthen charge pathways to improve performance consistency and enhance performance at partial state of charge (PSoC) environment.
  • ThixoPure™
    Thermal Protection Heat Protection Case
    Specially formulated heat and flame resistant polypropylene case material is used to effectively block ambient heat thus preventing heat related malfunctions such as thermal runaway. This proprietary high rigidity case material has heat deflection rating of 140°C and complies to RoHS Compliant EU Directive 2002/95/EC. Additional UL94-V0 protection also available.

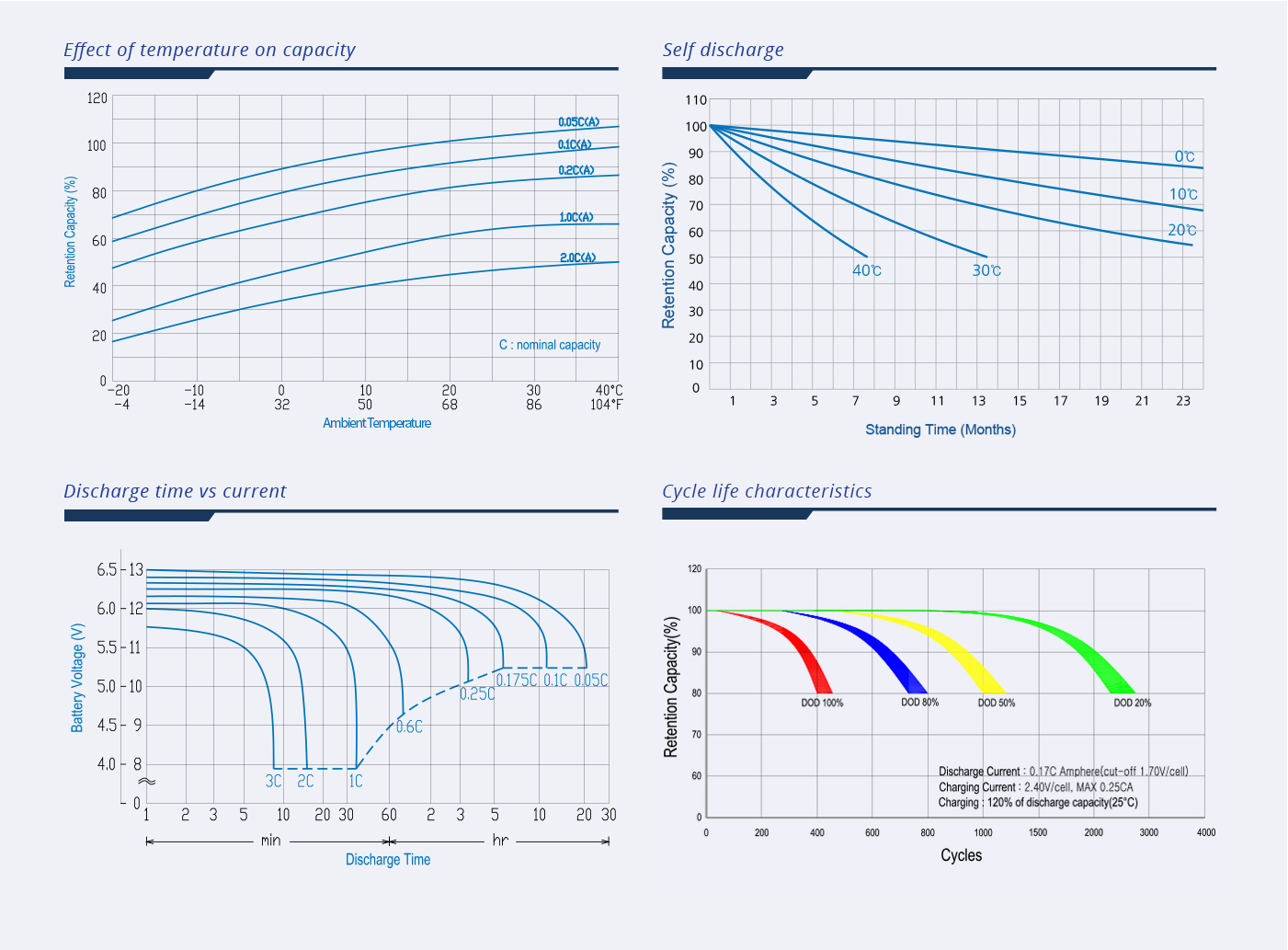

그래프

12 Voltage PNC Series Battery Range Specifications

※ 좌, 우로 스와이프하면 내용을 확인할 수 있습니다.

Battery Type (V) Nominal Capacity (AH) Dimension Weight Terminal Type
10HR 5HR 3HR 1HR Length Width Height T.Height Approx.
Final V.P.C (mm) (inch) (mm) (inch) (mm) (inch) (mm) (inch) (Lb) (kg) (S) (O)
(1.80) (1.75) (1.70) (1.60)
PNC 12400 12 40 37 33 26 197 7.76 166 6.54 170 6.69 170 6.69 31.5 14.3 D K
PNC 12500P 12 50 46 42 33 197 7.76 166 6.54 170 6.69 170 6.69 32.6 14.8 D K
PNC 12550 12 55 51 46 36 229 9.02 138 5.43 208 8.19 213 8.39 39.7 18.0 L
PNC 12700 12 70 64 58 46 325 12.80 166 6.54 175 6.89 175 6.89 50.7 23.0 E M
PNC 12800 12 80 75 68 48 332 13.07 174 6.85 215 8.46 239 9.46 63.8 29.0 H N
PNC 121000 12 100 94 85 67 332 13.07 174 6.85 215 8.46 239 9.46 70.4 32.0 H N
PNC 121200 12 120 110 98 72 500 19.69 180 7.09 195 7.68 224 8.82 87.1 39.5 H N
PNC 121500 12 150 141 128 101 500 19.69 260 10.24 195 7.72 225 8.86 101.4 46.0 H N
PNC 122000 12 200 183 168 122 500 19.69 260 10.24 195 7.72 225 8.86 132.3 60.0 H N
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입
  • 터미널 타입

TERMINAL(mm)

※ 좌, 우로 스와이프하면 내용을 확인할 수 있습니다.

Type A B C D E F G H I J K L M N O
(A) 4.75 6.30 12.00 15.00 15.00 11.50 4.50 11.50 13.50 13.50 M6 M6 M6 M8 M8
(B) 0.80 0.80 6.50 6.30 6.30 5.00 11.50 5.25 5.00 5.00 14.00 15.50 17.50 21.00 22.00
(C) 8.60 8.60 2.30 5.00 7.00 5.00 5.00 5.00 5.00 6.00
